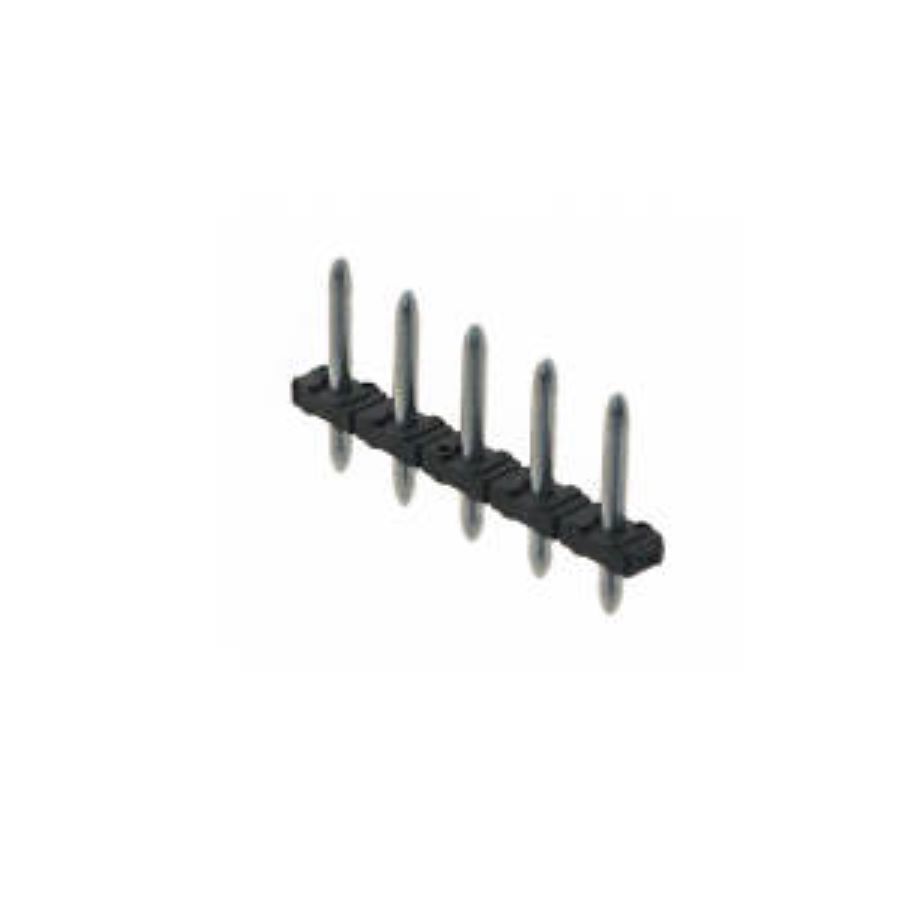

1933215
Manufacturer:
Phoenix Contact
Mfr.Part #:
1933215
Datasheet:
Description:
Headers and Wire Housings Through Hole Number of Positions:5 Pitch:5 mm
| Parameter | Value |
|---|---|
| Voltage Rating (DC) | 400 V |
| Length | 25 mm |
| Width | 20 mm |
| Termination | Solder |
| Packaging | Bulk |
| Voltage Rating | 300 V |
| Depth | 2.8 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Voltage | 300 V |
| Weight | 879.997547 mg |
| Contact Plating | Tin |
| Contact Material(Contact Finish) | Copper |
| Pitch | 5 mm |
| Current | 16 A |
| Current Rating | 16 A |
| Max Current Rating | 12 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Color | Black |
| Gender | Male |
| Number of Contacts | 5 |
| Number of Poles | 5 |
| Number of Positions | 5 |
| Number of Rows | 1 |
| Insulation Material | Nylon |
| Housing Material | Polyamide |
| Number of Positions Per Level | 5 |
| Number of Levels | 1 |
| Wire Gauge (Max) | 12 AWG |
| Wire Gauge (Min) | 26 AWG |
| Housing Color | Black |
| Mating Post Length | 7.5 mm |
| Termination Post Length | 2.5 mm |
| Connection Method | Plug |
| Current Rating (IEC) | 10 A |
| Voltage Rating (IEC) | 320 V |
